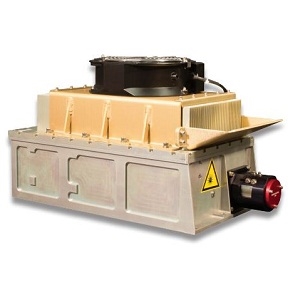

HLS-002-PMG

Laser by Northrop Grumman

Note: Your Quotation Request will be directed to Northrop Grumman.

The HLS-002-PMG from Northrop Grumman is a Laser with Wavelength 532 nm, Power 2 W, Output Power (Pulsed) 2 W, Pulse Energy 0.2 mJ, Pulse Width 1.5 ns. More details for HLS-002-PMG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HLS-002-PMG
  • Manufacturer
    Northrop Grumman
  • Description
    The HLS Series diode pumped solid state (DPSS) laser system short-pulse laser ‘front-end’ with Yb-doped fiber and Nd:YVO4 lasers

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Defense / Military & Aerospace, Environmental
  • Application
    LiDAR, Environmental Mapping, Monitoring
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    2 W
  • Output Power (Pulsed)
    2 W
  • Pulse Energy :
    0.2 mJ
  • Pulse Energy
    0.2 mJ
  • Pulse Width
    1.5 ns
  • Repetition Rate
    10 to 50 kHz
  • Technology
    DPSS Laser, Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.5 mrad
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YVO4
  • Laser Gain Medium
    Vanadate Lasers
  • Warm up time
    20 min
  • Power Consumption
    750 W
  • Interface
    Ethernet
  • Voltage
    28 VDC
  • Note
    Mount: 4U Rack Mount, Jitter: 100 ps

Physical Properties

  • Laser Head Dimension
    17.3 x 8 x 9.2 in
  • Beam Diameter
    4 mm
  • Fiber length
    Cable Length: 14 ft

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    -23 to 40 Degree C
  • Storage Temperature
    -28 to 50 Degree C
