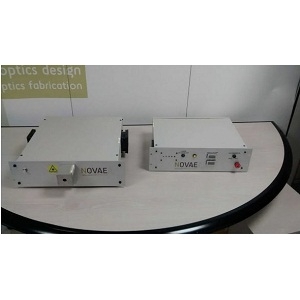

Basics Lambda+

Laser by NOVAE

Note: Your Quotation Request will be directed to NOVAE.

The Basics Lambda+ from NOVAE is a Laser with Wavelength 2.1 µm, Power 150 mW, Output Power (Pulsed) 150 mW, Pulse Width 85 fs, Repetition Rate 20 MHz. More details for Basics Lambda+ can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Basics Lambda+
  • Manufacturer
    NOVAE
  • Description
    The mid-IR high peak power laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Scientific / Research
  • Application
    Spectrum Analysis, Test & Measurement
  • Operation Mode
    Pulsed Laser
  • Wavelength
    2.1 µm
  • Power
    150 mW
  • Output Power (Pulsed)
    150 mW
  • Pulse Width
    85 fs
  • Repetition Rate
    20 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Mid-InfraRed
  • Polarization Orientation
    Linear
  • Transverse Mode
    Gaussian, single mode
  • Power Supply
    100 to 240 V VAC 50/60 Hz

Physical Properties

  • Package
    Benchtop
  • Dimension
    177 x 440 x 470 mm3 (x2)
  • Weight
    10 Kg(Electrical), 13 Kg(Optical)

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    20 to 30 Degree C
