p150

Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Novanta Photonics.

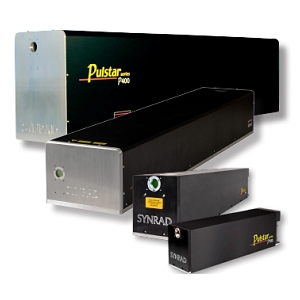

The p150 from Novanta Photonics is a Laser with Wavelength 9.3 µm, 10.2 µm, 10.6 µm, Power >150 W, Pulse Energy 335 mJ. More details for p150 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    p150
  • Manufacturer
    Novanta Photonics

General Parameters

  • Configuration
    OEM Laser Module
  • Type
    Laser System
  • Technology
    Gas Laser
  • Operation Mode
    Pulsed Laser
  • Wavelength
    9.3 µm, 10.2 µm, 10.6 µm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Power
    >150 W
  • Pulse Energy
    335 mJ
  • Pulse Width
    600 µs
  • Application
    Marking, Drilling, Cutting
  • Rise/Fall Time
    < 50 µs, < 100 µs
  • Gain Medium Type
    Gas
  • Laser Gain Medium
    CO2
  • Application Industry
    Industrial (Material Processing)
  • Beam Divergence
    1.9 mrad
  • Current
    65 to 100 A
  • Power Stability
    ±6%
  • Peak Power
    600 W @ 9.3 & 10.6 µm 550 W @ 10.2 µm
  • Pulse Energy
    335 mJ
  • Package
    Benchtop

Physical Properties

  • Dimension
    798x 132 x 155 mm (L x W x H)
  • Weight
    18.1 kg
  • Beam Diameter
    8.5 mm ± 1.0 mm
