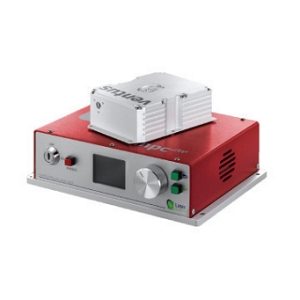

Ventus 561

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Novanta Photonics.

The Ventus 561 from Novanta Photonics is a Laser with Wavelength 561 nm, Power 100 to 750 mW, Operating Temperature 15 to 40 Degree C. More details for Ventus 561 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Ventus 561
  • Manufacturer
    Novanta Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Machine Vision
  • Operation Mode
    CW Laser
  • Wavelength
    561 nm
  • Bandwidth
    40 GHz
  • Power
    100 to 750 mW
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes, No
  • Laser Color
    Green
  • Polarization
    Horizontal
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <1 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Power Stability
    <1%
  • Pointing Stability :
    <10 µrad / Degree C
  • RMS Noise Power
    <1.5%
  • Warranty
    2 Years
  • Note
    Umbilical Length: 1.5 m

Physical Properties

  • Package
    Benchtop
  • Weight
    0.75 kg
  • Beam Diameter
    1.5 ± 0.1 mm

Environmental Conditions

  • Operating Temperature
    15 to 40 Degree C
