C&L Band ASE Source

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to NP Photonics, Inc..

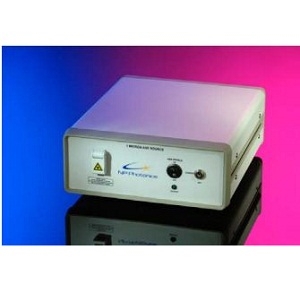

The C&L Band ASE Source from NP Photonics, Inc. is a Laser with Wavelength 1525 to 1610 nm, Power 13, 17, & 19 dBm, Output Power (CW) 13, 17, & 19 dBm. More details for C&L Band ASE Source can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    C&L Band ASE Source
  • Manufacturer
    NP Photonics, Inc.

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Medical
  • Application
    Sensing, Test & Measurement, Medical imaging, Bio-Medical, Spectroscopy
  • Operation Mode
    CW Laser
  • Wavelength
    1525 to 1610 nm
  • Spectral Width :
    85 nm
  • Power
    13, 17, & 19 dBm
  • Output Power (CW)
    13, 17, & 19 dBm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Polarization ratio :
    0.05 dB
  • Power Stability
    ± 0.01% rms

Physical Properties

  • Dimension
    310.12 x 257 x 103 mm
