EDFL-PICO-1560-5-40-FCA

Note: Your Quotation Request will be directed to Nuphoton Technologies, Inc..

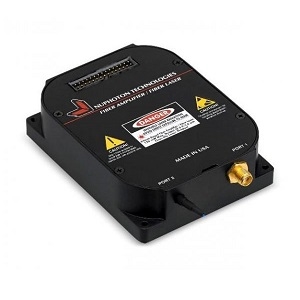

The EDFL-PICO-1560-5-40-FCA from Nuphoton Technologies, Inc. is a Picosecond Mode-Locked Fiber Laser Module that operates at a wavelength of 1560 nm. It provides an output power of 5 mW with a pulse width of 5 ps and has a pulse repetition rate of 40 MHz. This microprocessor-controlled laser requires a DC supply of 3.3 V and supports RS-232 and TTL interfaces. It is available in a module that measures 90 x 70 x 24 mm with electrical interface connectors.

Product Specifications View similar products

Product Details

  • Part Number
    EDFL-PICO-1560-5-40-FCA
  • Manufacturer
    Nuphoton Technologies, Inc.
  • Description
    1550 nm Picosecond Mode-Locked Fiber Laser Module

General Parameters

  • Configuration
    OEM Laser Module
  • Type
    Laser Module
  • Technology
    Mode-Locked Laser
  • Operation Mode
    Pulsed Laser
  • Ultrafast Laser
    Picosecond Lasers
  • Wavelength
    1560 nm
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Power
    5 mW
  • Pulse Width
    5 ps
  • Polarization ratio
    > 20 dB
  • Repetition Rate
    40 +/- 5 MHz (typical)
  • Gain Medium Type
    Solid State (Crystal / Glass)
  • Laser Gain Medium
    Erbium-Doped
  • Connectors
    FC / APC, SMF-28
  • Interface
    RS-232
  • Power Supply
    +3.3 VDC
  • Note
    Micro Processor Controlled

Physical Properties

  • Dimension
    90 x 70 x 24 mm
  • Fiber length
    1 meter
