YDFL-NANO-1060-100-50-1.5-COL

Note: Your Quotation Request will be directed to Nuphoton Technologies, Inc..

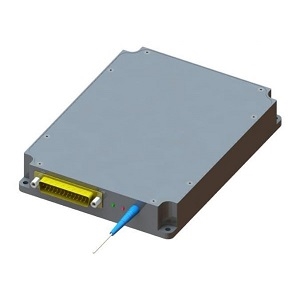

The YDFL-NANO-1060-100-50-1.5-COL from Nuphoton Technologies, Inc. is a Ytterbium Doped Nanosecond Fiber Laser Module that operates at a wavelength of 1060 nm. It provides an output power of 1.5 W. This nanosecond fiber laser produces an energy per pulse of up to 50 μJ with a pulse width of 70-100 ns and has a pulse repetition rate of 30 kHz. It requires a DC supply of 24 V and supports RS-232 and TTL interfaces. This microprocessor-controlled laser is available in a module that measures 158 x 120 x 25 mm with electrical interface connectors.

Product Specifications View similar products

Product Details

  • Part Number
    YDFL-NANO-1060-100-50-1.5-COL
  • Manufacturer
    Nuphoton Technologies, Inc.
  • Description
    1060 nm Ytterbium Doped Nanosecond Fiber Laser Module

General Parameters

  • Configuration
    OEM Laser Module
  • Type
    Laser Module
  • Operation Mode
    Pulsed Laser
  • Ultrafast Laser
    Nanosecond Lasers
  • Wavelength
    1060 nm
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Power
    1.5 W
  • Pulse Energy
    0 to 50 uJ
  • Pulse Width
    70 to 100 ns
  • Repetition Rate
    30 kHz
  • Gain Medium Type
    Solid State (Crystal / Glass)
  • Laser Gain Medium
    Ytterbium-Doped
  • Beam Divergence
    0.5 mrad
  • Interface
    RS-232
  • Power Supply
    +24 VDC
  • Note
    Micro Processor Controlled

Physical Properties

  • Dimension
    158 x 120 x 25 mm
