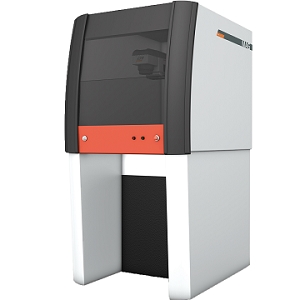

MAG BIG BOX-50

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to O.R. Lasertechnology.

The MAG BIG BOX-50 from O.R. Lasertechnology is a Laser with Wavelength 1067 nm, Power 50 W, Pulse Energy 1500 µJ, Pulse Width 100 ns, Operating Temperature 5 to 40 Degree C. More details for MAG BIG BOX-50 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MAG BIG BOX-50
  • Manufacturer
    O.R. Lasertechnology
  • Description
    Safe lasermarking of heavy workpieces

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Environmental
  • Application
    Cladding
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1067 nm
  • Power
    50 W
  • Pulse Energy :
    1500 µJ
  • Pulse Energy
    1500 µJ
  • Pulse Width
    100 ns
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Modulation Frequency
    30 to 200 kHz
  • Power Consumption
    800 W
  • Peak Power
    15 kW

Physical Properties

  • Package
    Benchtop
  • Laser Head Dimension
    428 x 106 x 140 mm
  • Laser Head Weight
    7 Kg
  • Power Supply Dimension
    349 x 130 x 325 mm
  • Power Supply Weight
    15.7 Kg
  • Fiber length
    300 cm

Environmental Conditions

  • Cooling Method
    Air Cooling
  • Operating Temperature
    5 to 40 Degree C
