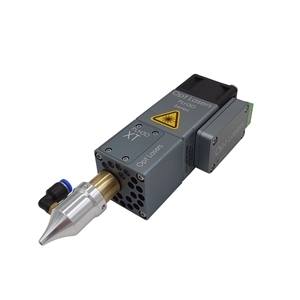

PLH3D-XT-50

Laser by Opt Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Opt Lasers.

The PLH3D-XT-50 from Opt Lasers is a Laser with Wavelength 445 nm, Power 6 W, Operating Temperature 0 to 45 Degree C. More details for PLH3D-XT-50 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PLH3D-XT-50
  • Manufacturer
    Opt Lasers
  • Description
    445 nm Specialized Engraving Laser Head

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), Laser Head
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Cutting, Engraving
  • Operation Mode
    CW Laser
  • Wavelength
    445 nm
  • Wavelength Accuracy
    ±10 nm
  • Power
    6 W
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Blue
  • Power Consumption
    30 W
  • Voltage
    12 to 24 V

Physical Properties

  • Dimension
    1.6 x 1.7 x 5.51 Inches
  • Weight
    0.37 kg

Environmental Conditions

  • Cooling Method
    Air-Cooled
  • Operating Temperature
    0 to 45 Degree C
