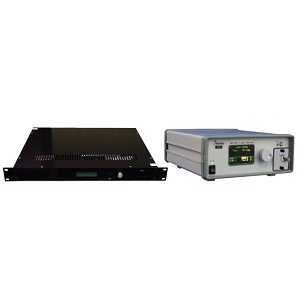

PNL-1064

Laser by Optilab
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Optilab.

The PNL-1064 from Optilab is a Laser with Wavelength 1064 nm, Power 100 mW, Pulse Energy up to 20 nJ, Pulse Width 5 ns, Repetition Rate 100 Hz to 50 MHz. More details for PNL-1064 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PNL-1064
  • Manufacturer
    Optilab
  • Description
    1064 nm Programmable Nanosecond Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research
  • Application
    Engraving, Marking, Surface Treatment, Test & Measurement, Spectrum Analysis
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Wavelength Accuracy
    ± 15 nm
  • Power
    100 mW
  • Pulse Energy :
    up to 20 nJ
  • Pulse Energy
    up to 20 nJ
  • Pulse Width
    5 ns
  • Repetition Rate
    100 Hz to 50 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Polarization ratio :
    20 dB
  • Connectors
    SMA Female
  • Peak Power
    500 mW
  • Interface
    RS-232 via USB 2.0
  • Power Supply
    110 VAC and 220 VAC, 50 or 60 Hz

Physical Properties

  • Package
    Rack Mount
  • Dimension
    1RU: 19 x 20.5 x 3.5 Inch

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C
