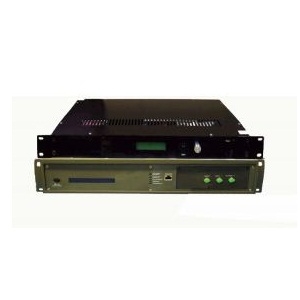

PPL-1550-37-R

Laser by Optilab
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Optilab.

The PPL-1550-37-R from Optilab is a Laser with Wavelength 1543 to 1570 nm, Power 37 dBm, Pulse Energy Up to 50 mJ, Pulse Width 200 ps, Repetition Rate 1 to 3 MHz. More details for PPL-1550-37-R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PPL-1550-37-R
  • Manufacturer
    Optilab
  • Description
    1550 nm Picosecond Pulsed Laser, MOPA with 37 dBm Output

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Defense / Military & Aerospace, Communications, Scientific / Research
  • Application
    LiDAR, Free-Space Optical Communication, Test & Measurement
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1543 to 1570 nm
  • Bandwidth
    Up to 20 GHz
  • Power
    37 dBm
  • Pulse Energy :
    Up to 50 mJ
  • Pulse Energy
    Up to 50 mJ
  • Pulse Width
    200 ps
  • Repetition Rate
    1 to 3 MHz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Infrared
  • Polarization ratio :
    20 dB
  • Rise/Fall Time :
    35 ps
  • Connectors
    SMA Female
  • Peak Power
    Up to 2 kW
  • Interface
    RS-232 interface cabling from PC to rackmount units
  • Power Supply
    110 VAC and 220 VAC, 50 or 60 Hz
  • Note
    Tunning Wavelength: Up to ±1.5 nm

Physical Properties

  • Package
    Benchtop
  • Dimension
    19 x 14 x 1.75 Inch

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C
