VA-II-300-473

Laser by Optotronics

Note: Your Quotation Request will be directed to Optotronics.

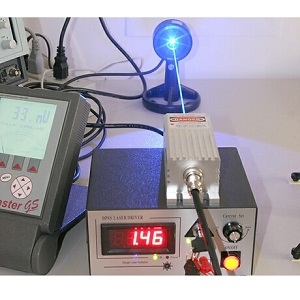

The VA-II-300-473 from Optotronics is a Laser with Power 300 mW, Wavelength 473 nm, Output Power (CW) 300 mW, Operating Temperature 18 to 30 Degree C. More details for VA-II-300-473 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VA-II-300-473
  • Manufacturer
    Optotronics
  • Description
    473nm DPSS blue laser systems

General Parameters

  • Configuration
    Laser Head with Control Unit (Separate)
  • Type
    Laser System
  • Technology
    DPSS Laser
  • Operation Mode
    CW Laser
  • Application
    DNA Sequencing, Spectroscopy, Interferometry, Holography, Fluorescence, Inspection & Measurement, Imaging, Microscopy, Diagnosis
  • Power
    300 mW
  • Wavelength
    473 nm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Blue
  • Output Power (CW)
    300 mW
  • Spectral Width :
    0.1 nm
  • Polarization Orientation
    Linear
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    15 Minutes
  • Application Industry
    Scientific Research, Entertainment, Automotive / Industrial & Manufacturing, Medical
  • Beam Shape
    Round
  • Beam Divergence :
    0.2 mrad
  • Transverse Mode
    TEM00
  • Modulation Frequency
    30 KHz
  • Power Stability
    5% RMS
  • Power Supply
    110-120V 60hz (15A), 220-240V 50hz (10A)
  • Note
    Expected Lifetime: 10000 h

Physical Properties

  • Laser Head Dimension
    180 x 62 x 62 mm
  • Beam Diameter
    1.2 mm

Environmental Conditions

  • Operating Temperature
    18 to 30 Degree C
