PLPVDC 940_P_L01

Laser by OSRAM

Note: Your Quotation Request will be directed to OSRAM.

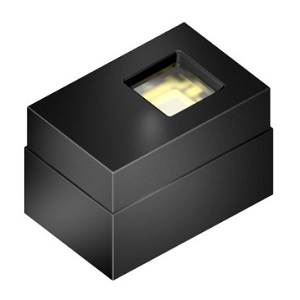

The PLPVDC 940_P_L01 from OSRAM is an Infrared Laser Module that operates at 940 nm. It features a built-in driver IC specially designed towards 3D sensing applications based on the Time-of-Flight (ToF) method. The 940 nm VCSEL power array delivers an optical output power of 3W with a typical rise and fall times of 0.5 ns. The built-in laser driver IC provides Automatic Power Control (APC), laser safety features, an integrated temperature sensor, and improved optical rise times due to reduced parasitic inductances. The integrated monitor photodiode is used for calibration of the optical output power, automatic power control, and for detecting laser safety issues (lens drop, skin contact). This laser module is available in a compact footprint that measures 3.6 x 5.46 mm with an SPI interface and is ideal for photography, AR gaming, and object scanning applications.

Product Specifications View similar products

Product Details

  • Part Number
    PLPVDC 940_P_L01
  • Manufacturer
    OSRAM

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser Module
  • Operation Mode
    Pulsed Laser
  • Wavelength
    940 nm
  • Fiber Coupled
    No
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Power
    3 W
  • Application
    3D Sensing, AR Gaming, Object Scanning
  • Rise/Fall Time
    0.5 ns
  • Gain Medium Type
    Semiconductor
  • Application Industry
    Display / Projector & LED / Lighting, Inspection / Analysis / Detection, Imaging
  • Slope Efficiency
    0.95 W/A
  • Interface
    SPI
  • Note
    VCSEL technology

Physical Properties

  • Dimension
    3.6 mm x 5.46 mm
Click to view more product details on manufacturer's website
