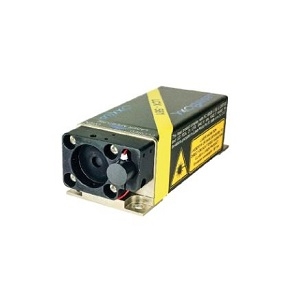

LPX-640L

Laser by OXXIUS
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OXXIUS.

The LPX-640L from OXXIUS is a Laser with Wavelength 639.7 nm, Power 300, 500 mW, Output Power (CW) 300, 500 mW, Operating Temperature 10 to 50 Degree C, Storage Temperature 0 to 60 Degree C. More details for LPX-640L can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LPX-640L
  • Manufacturer
    OXXIUS

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Environmental
  • Application
    Imaging, Microscopy, Flow Cytometry, DNA Sequencing, Fluorescence, Spectroscopy, Spectrum Analysis, Etching, Particle Analysis, Marking
  • Operation Mode
    CW Laser
  • Wavelength
    639.7 nm
  • Wavelength Accuracy
    ±1 nm
  • Spectral Width :
    <0.3 nm
  • Bandwidth
    DC to 1.5 KHz
  • Power
    300, 500 mW
  • Output Power (CW)
    300, 500 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes, No
  • Laser Color
    Red
  • Polarization
    Vertical
  • Polarization Orientation
    Linear
  • Polarization ratio :
    100:1
  • Beam Divergence :
    1 mrad
  • Beam Quality Factor (M2) :
    <1.1
  • Laser Class
    Class 4
  • Warm up time
    10 minutes
  • Modulation Frequency
    10MHz
  • Power Consumption
    20 W
  • Power Stability
    ±1%
  • Pointing Stability :
    <5 µrad/K
  • RMS Noise Power
    <1.5%
  • Interface
    USB, RS-232
  • Voltage
    100 to 240 VAC

Physical Properties

  • Package
    Benchtop
  • Laser Head Weight
    600 g with heatsink (Integrated) / 250 g (OEM)
  • Beam Diameter
    0.7 ±0.1 mm

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    0 to 60 Degree C
