LUV Series

Laser by OXXIUS
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OXXIUS.

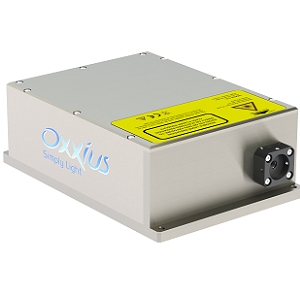

The LUV Series from OXXIUS is a Laser with Wavelength 266.2 to 280.7 nm, Power 10 mW, Output Power (CW) 10 mW, Operating Temperature 15 to 40 Degree C. More details for LUV Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LUV Series
  • Manufacturer
    OXXIUS
  • Description
    LUV series Deep UV laser source

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Spectroscopy, Imaging, Fluorescence, DNA Sequencing, Photoluminescence
  • Operation Mode
    CW Laser
  • Wavelength
    266.2 to 280.7 nm
  • Spectral Width :
    300 kHz
  • Power
    10 mW
  • Output Power (CW)
    10 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1.5 mrad
  • Warm up time
    10 to 15 Minutes
  • Power Consumption
    20 to 25 W
  • Pointing Stability :
    5 µrad/°K
  • Interface
    USB, RS-232, I/O interface
  • Power Supply
    100 to 240 VAC

Physical Properties

  • Laser Head Dimension
    220 x 161 x 110 mm
  • Laser Head Weight
    6.5 kg
  • Beam Diameter
    0.2 mm
  • Fiber diameter
    200 µm

Environmental Conditions

  • Operating Temperature
    15 to 40 Degree C
