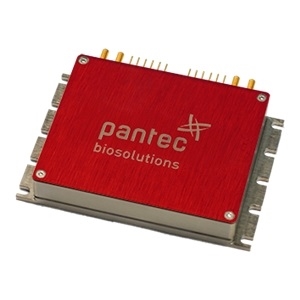

The DLM-6 (NIR) from Pantec Biosolutions AG is a Near-Infrared (NIR) Diode Laser that operates at a wavelength of 980 nm. It delivers a maximum output power of 6 W and has a spectral width (FWHM) below 1 nm. This linearly polarised laser produces a beam of diameter of less than 1 mm and has a maximum beam quality factor (M²) of 2. It has a pulse duration from 50 μs to CW and duty cycle of up to 100%. This single-frequency laser operates in both continuous wave (CW) & pulsed modes and has a Gaussian beam profile. It can be controlled via RS232 / Mini USB interfaces and supports TTL trigger in/out. This laser requires a DC supply voltage of 12 V and consumes below 2.5 A of current. It is available in a module that measures 80 (W) mm x 65 (D) mm x 15 (H) mm.
