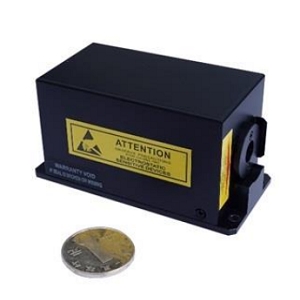

W488 | W-FS Series

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Pavilion Integration Corporation.

The W488 | W-FS Series from Pavilion Integration Corporation is a Laser with Wavelength 488 nm, Power 20 to 200 mW, Operating Temperature 10 to 40 Degree C, Storage Temperature -20 to 60 Degree C. More details for W488 | W-FS Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    W488 | W-FS Series
  • Manufacturer
    Pavilion Integration Corporation
  • Description
    488 nm Whisper Standard Laser - Free Space (W-FS series)

General Parameters

  • Type
    Laser Module
  • Configuration
    OEM Laser Module, Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific Research, Medical, Automotive / Industrial & Manufacturing
  • Application
    Flow Cytometry, DNA Sequencing, Medical Imaging, Confocal Microscopy, Optogenetics, Metrology, Semiconductor Instrumentation
  • Operation Mode
    CW Laser
  • Wavelength
    488 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    20 to 200 mW
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Cyan
  • Polarization
    Vertical
  • Polarization ratio :
    >100:1 dB
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <1.2 mrad
  • Beam Quality Factor (M2) :
    <1.3
  • Gain Medium Type
    Solid State Laser
  • Beam Shape
    Round
  • Connectors
    DB9
  • Laser Class
    Class 3B
  • Warm up time
    <5 min
  • Power Consumption
    <12 W
  • Power Stability
    <2%
  • Pointing Stability :
    <5 to 30 µrad
  • RMS Noise Power
    <0.1%
  • Interface
    RS232
  • Note
    Peak to Peak Noise: <0.5%, Spatial Mode: <1.3, Beam Symmetry: >90%, Beam Angle: ±2.5 mrad, Heat Dissipation of Laser Head: <12 W

Physical Properties

  • Dimension
    86 x 40 x 44 mm (L x W x H)
  • Beam Diameter
    0.85 mm ±0.1 mm

Environmental Conditions

  • Relative Humidity
    10 to 90%
  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C
