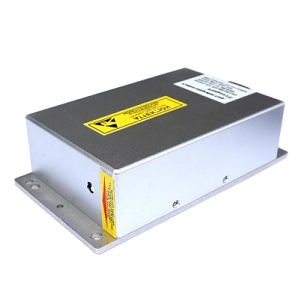

WSL505 | WSL-FS series

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Pavilion Integration Corporation.

The WSL505 | WSL-FS series from Pavilion Integration Corporation is a Laser with Wavelength 505 nm, Power 20 to 80 mW, Operating Temperature 10 to 50 Degree C, Storage Temperature -20 to 60 Degree C. More details for WSL505 | WSL-FS series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    WSL505 | WSL-FS series
  • Manufacturer
    Pavilion Integration Corporation
  • Description
    505 nm Whisper Standard Laser (WSL-FS series)

General Parameters

  • Type
    Laser Module
  • Configuration
    OEM Laser Module, Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific Research, Medical, Automotive / Industrial & Manufacturing
  • Application
    Flow Cytometry, DNA Sequencing, Medical Imaging, Confocal Microscopy, Optogenetics, Metrology, Semiconductor Instrumentation
  • Operation Mode
    CW Laser
  • Wavelength
    505 nm
  • Wavelength Accuracy
    ±2 to ±5 nm
  • Power
    20 to 80 mW
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Vertical
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <1.2 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Gain Medium Type
    Solid State Laser
  • Beam Shape
    Round
  • Connectors
    DB9
  • Laser Class
    Class 3B
  • Warm up time
    <5 min
  • Power Consumption
    <12 W
  • Power Stability
    <2%
  • Pointing Stability :
    <5 to 30 µrad
  • RMS Noise Power
    <0.1%
  • Interface
    RS232
  • Note
    Peak to Peak Noise: <0.5%, Beam Symmetry: <1:1.1, Beam Angle: ±2.5 mrad, Heat Dissipation of Laser Head: <12

Physical Properties

  • Dimension
    125 x 70 x 34 mm (L x W x H)
  • Beam Diameter
    0.7 mm ±0.1 mm

Environmental Conditions

  • Relative Humidity
    10 to 90%
  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C
