LEO Mark 532

Laser by Photon Energy
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photon Energy.

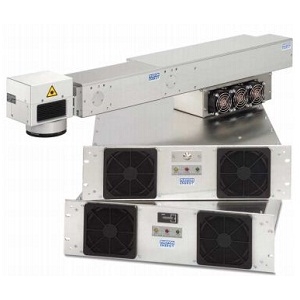

The LEO Mark 532 from Photon Energy is a Laser with Wavelength 532 nm, Power 3.5 W, Operating Temperature 10 to 35 Degree C. More details for LEO Mark 532 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LEO Mark 532
  • Manufacturer
    Photon Energy
  • Description
    LEO Mark

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental, Scientific / Research
  • Application
    Engraving, Carbonization, Packaging, Sensing, Imaging, Cladding, Structuring
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    3.5 W
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Laser
  • Modulation Frequency
    7 to 100 kHz
  • Power Consumption
    1 kW
  • Peak Power
    30 kW
  • Power Supply
    90 to 264 VAC, 47 to 63 Hz

Physical Properties

  • Laser Head Dimension
    860 x 147 x 195 mm³
  • Laser Head Weight
    19,5 kg
  • Power Supply Dimension
    473 x 482 x 133 mm³
  • Power Supply Weight
    16.5 kg
  • Fiber length
    3 m

Environmental Conditions

  • Cooling Method
    Air Cooled
  • Operating Temperature
    10 to 35 Degree C
