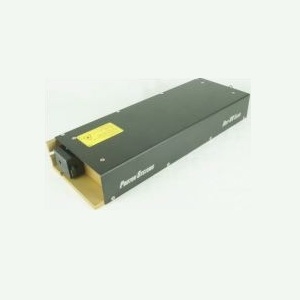

HeAg 30-224SL

Laser by Photon Systems
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photon Systems.

The HeAg 30-224SL from Photon Systems is a Laser with Wavelength 224.3 nm, Pulse Width 20 to 120 µs, Operating Temperature -200 to 100 Degree C. More details for HeAg 30-224SL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HeAg 30-224SL
  • Manufacturer
    Photon Systems

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated), OEM Laser Module
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Application
    Fluorescence, Spectroscopy, Photoluminescence, Food Sorting, Optical Coherence Tomography
  • Operation Mode
    Quasi-CW, Pulsed Laser
  • Wavelength
    224.3 nm
  • Bandwidth
    3 GHz
  • Pulse Width
    20 to 120 µs
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Beam Divergence :
    4 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    He-Ag
  • Laser Gain Medium
    Neutral Atom Gas Laser
  • Current
    100 mA
  • Laser Class
    Class 3B
  • Modulation Frequency
    1 to 5 Hz
  • Power Consumption
    10 W
  • Peak Power
    >10 mW
  • Interface
    USB, Ethernet
  • Power Supply
    90-250VAC, 47-63 Hz, 100mA or 24VDC@400mA
  • Voltage
    90 to 250 VAC
  • RoHS
    Yes
  • Note
    Longitudinal mode spacing: 642 MHz

Physical Properties

  • Package
    Benchtop
  • Dimension
    5 x 13 x 30 cm
  • Weight
    1.4 kg
  • Beam Diameter
    3 mm

Environmental Conditions

  • Operating Temperature
    -200 to 100 Degree C
