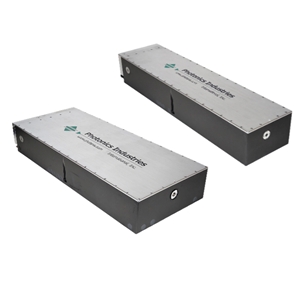

DM2-532-200

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

The DM2-532-200 from Photonics Industries is a Laser with Wavelength 532 nm, Power 400 W, Pulse Energy 40 mJ, Pulse Width 65 ns, Repetition Rate 1 to 50 kHz. More details for DM2-532-200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DM2-532-200
  • Manufacturer
    Photonics Industries
  • Description
    532 nm Multimode, Q-Switched Lasers with 400 W Power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific Research, Environmental, Automotive / Industrial & Manufacturing
  • Application
    Particle Image Velocimetry (PIV), Pumping Ti: Sapphire, Ultrafast Amplifier Systems, High Power cutting, drilling, welding, marking, patterning, Laser Thermal Processing (LTP), Semiconductor Lithography, Surface Cleaning and Ablation, Water-Jet Assisted Laser cutting, Diamond Cutting, Precision Layer Removal for Additive Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    400 W
  • Pulse Energy :
    40 mJ
  • Pulse Energy
    40 mJ
  • Pulse Width
    65 ns
  • Repetition Rate
    1 to 50 kHz
  • Pulse to Pulse Stability
    <1.5% RMS
  • Technology
    Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Mode
    Multi Mode
  • Laser Color
    Green
  • Beam Divergence :
    5 mrad
  • Beam Quality Factor (M2) :
    16 to 18
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped
  • Beam Shape
    Round
  • Laser Class
    CLASS 4
  • Warm up time
    <5 minutes (standby), <10 minutes (cold start)
  • Power Consumption
    5 kW
  • Power Stability
    <0.5% RMS
  • Pointing Stability :
    <25 µrad
  • Interface
    RS232, Ethernet, Software GUI, External TTL Triggering
  • Power Supply
    200 to 240 VAC, 50 to 60 Hz
  • RoHS
    Yes
  • Certifications
    CE, RoHS

Physical Properties

  • Laser Head Dimension
    685.8 x 355.6 x 107.95 mm
  • Power Supply Dimension
    406.4 x 411.48 x 88.9 mm
  • Weight
    45.4 kg
  • Beam Diameter
    4.5 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    0 to 80%
  • Altitude
    Sea level to 12000 m
  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -10 to 40 Degree C
