DX-355-40

140 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

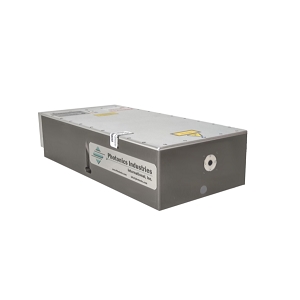

The DX-355-40 from Photonics Industries is a Laser with Wavelength 355 nm, Power 25 to 40 W, Pulse Energy 1 mJ, Pulse Width 9 to 24 ns, Repetition Rate 300 kHz (option up to >500 kHz). More details for DX-355-40 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DX-355-40
  • Manufacturer
    Photonics Industries

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Communications, Scientific / Research
  • Application
    Cutting, Drilling, Welding, Scribing, Marking, Etching, Surface Treatment, Optical Fiber Communication, Laser Printers, Laser pumping, Selective Soldering, Annealing, Machine Vision
  • Operation Mode
    Pulsed Laser
  • Wavelength
    355 nm
  • Power
    25 to 40 W
  • Pulse Energy :
    1 mJ
  • Pulse Width
    9 to 24 ns
  • Repetition Rate
    300 kHz (option up to >500 kHz)
  • Pulse to Pulse Stability
    < 2% rms
  • Technology
    Q-Switched Laser, DPSS laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    < 1.5 mrad
  • Beam Quality Factor (M2) :
    < 1.1
  • Beam Shape
    Round
  • Current
    15 A
  • Warm up time
    < 15 minutes from standby, < 30 minutes from cold start
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    < 420 W
  • Power Stability
    < ±2% rms
  • Pointing Stability :
    < 25 µrad
  • Interface
    RS 232 / Ethernet / GUI / External TTL Triggering
  • Power Supply
    100 to 240 V AC or 32 V DC, 15 A
  • Voltage
    100 to 240 VAC

Physical Properties

  • Package
    Benchtop
  • Dimension
    18 x 7.5 x 3.75 in
  • Weight
    13.2 kg
  • Beam Diameter
    2.5 mm

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Relative Humidity
    0 to 90%
  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -10 to 40 Degree C
