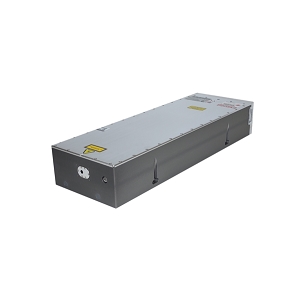

DX-532-LP

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

The DX-532-LP from Photonics Industries is a Laser with Wavelength 532 nm, Power 25 to 35 W, Pulse Width 85 to 340 ns, Repetition Rate 200 kHz (option up to 300 kHz), Operating Temperature 15 to 35 Degree C. More details for DX-532-LP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DX-532-LP
  • Manufacturer
    Photonics Industries

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Communications, Scientific / Research
  • Application
    Cutting, Drilling, Welding, Scribing, Optical Fiber Communication, Laser Printers, Laser pumping, Marking, Etching, Surface Treatment, Selective Soldering, Annealing, Solar cell, Dicing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    25 to 35 W
  • Pulse Width
    85 to 340 ns
  • Repetition Rate
    200 kHz (option up to 300 kHz)
  • Pulse to Pulse Stability
    < 1.5% rms
  • Technology
    Q-Switched Laser, DPSS laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Vertical
  • Polarization ratio :
    100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    2 mrad
  • Beam Quality Factor (M2) :
    < 1.2
  • Beam Shape
    Round
  • Current
    15 A
  • Warm up time
    < 15 minutes from standby, < 30 minutes from cold start
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    < 400 W
  • Pointing Stability :
    < 25 µrad
  • Interface
    RS 232 / Ethernet / GUI / External TTL Triggering
  • Power Supply
    100 to 240 V AC or 32 V DC, 15 A
  • Voltage
    100 to 240 VAC

Physical Properties

  • Package
    Benchtop
  • Dimension
    22.5 x 7.5 x 3.75 in
  • Weight
    22.2 kg
  • Beam Diameter
    1 mm

Environmental Conditions

  • Cooling Method
    Water-Cooled
  • Relative Humidity
    0 to 90%
  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    -10 to 40 Degree C
