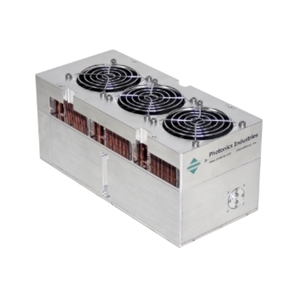

DXG-532-5

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

The DXG-532-5 from Photonics Industries is a Laser with Wavelength 532 nm, Power 5 W, Pulse Energy 500 µJ, Pulse Width 15 ns, Repetition Rate Single shot to 50 kHz. More details for DXG-532-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DXG-532-5
  • Manufacturer
    Photonics Industries
  • Description
    532 nm Q-Switched Lasers with 5 W Power

General Parameters

  • Type
    Laser System
  • Configuration
    OEM Laser Module, Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific Research, Defense / Military & Aerospace
  • Application
    Marking & Scribing, Silicon, PERC and Solar Cell, PCB & Polymer Cutting & Drilling, Selective Annealing and Doping, Copper & Gold Sintering, Gold & ITO Scribing, Resistor Trimming, LIDAR & Laser Ranging
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    5 W
  • Pulse Energy :
    500 µJ
  • Pulse Energy
    500 µJ
  • Pulse Width
    15 ns
  • Repetition Rate
    Single shot to 50 kHz
  • Pulse to Pulse Stability
    <3% RMS
  • Technology
    DPSS Laser, Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Vertical
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <3 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped
  • Beam Shape
    Round
  • Current
    13.4 A
  • Laser Class
    CLASS 4
  • Warm up time
    <5 minutes (standby), <10 minutes (cold start)
  • Power Consumption
    130 W
  • Power Stability
    <2% RMS
  • Pointing Stability :
    <25 µrad
  • Interface
    RS232, Ethernet, Software GUI, External TTL Triggering
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Voltage
    15 VDC
  • RoHS
    Yes
  • Certifications
    CE, RoHS

Physical Properties

  • Dimension
    11 x 5 x 5 Inches
  • Weight
    7 kg
  • Beam Diameter
    0.5 mm

Environmental Conditions

  • Cooling Method
    Air Cooled, Base Plate Cooled
  • Relative Humidity
    0 to 80%
  • Altitude
    Sea level to 12000 m
  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -10 to 40 Degree C
