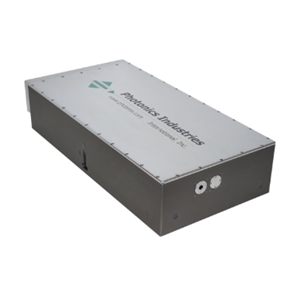

FS-515-50

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

The FS-515-50 from Photonics Industries is a Laser with Wavelength 515 nm, Power 50 W, Pulse Energy >350 µJ, Pulse Width <550 fs to 5 ps, Repetition Rate Single shot to 2 MHz. More details for FS-515-50 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FS-515-50
  • Manufacturer
    Photonics Industries
  • Description
    515 nm Femtosecond Lasers with 50 W Power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers, Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific Research, Medical
  • Application
    Glass Cutting, engraving and drilling, Through Glass Via (TGV) and interposer processing, Semiconductor and Microelectronics Processing, Precision Micromachining of metals and ceramics, Foils and Films for Batteries and Superconductors, UV Processing of Polymers and Organic Materials, Polymer Cutting & Drilling, Quantum Technology Development, Medical Device Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    515 nm
  • Wavelength Accuracy
    ±3 nm
  • Power
    50 W
  • Pulse Energy :
    >350 µJ
  • Pulse Energy
    >350 µJ
  • Pulse Width
    <550 fs to 5 ps
  • Repetition Rate
    Single shot to 2 MHz
  • Pulse to Pulse Stability
    1% RMS
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Quality Factor (M2) :
    <1.3
  • Beam Shape
    Round
  • Laser Class
    CLASS 4
  • Warm up time
    <30 minutes
  • Power Consumption
    <1000 W
  • Power Stability
    <1% RMS
  • Pointing Stability :
    <25 µrad
  • Interface
    RS232, Ethernet, Software GUI, External TTL Triggering
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • RoHS
    Yes
  • Certifications
    CE, RoHS

Physical Properties

  • Dimension
    22 x 10 x 4.25 Inches
  • Weight
    29.5 kg
  • Beam Diameter
    <2 mm

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    0 to 80%
  • Altitude
    Sea level to 12000 m
  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -10 to 40 Degree C
