FS1-1030-50

140 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

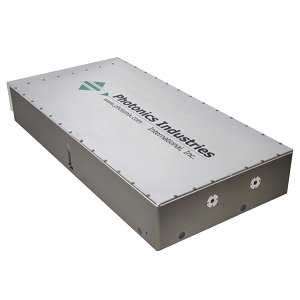

The FS1-1030-50 from Photonics Industries is a Laser with Wavelength 1030 nm, Power 50 W, Pulse Energy 50 µJ, Pulse Width < 350 fs to 20 ps, Repetition Rate 2 to 40 MHz. More details for FS1-1030-50 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FS1-1030-50
  • Manufacturer
    Photonics Industries

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Environmental
  • Application
    Cutting, Drilling, Welding, Scribing, Marking, Etching, Surface Treatment, Selective Soldering, Display device, Material processing, Machine Vision
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1030 nm
  • Wavelength Accuracy
    ±8 nm
  • Power
    50 W
  • Pulse Energy :
    50 µJ
  • Pulse Width
    < 350 fs to 20 ps
  • Repetition Rate
    2 to 40 MHz
  • Pulse to Pulse Stability
    2% rms
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Transverse Mode
    TEM00
  • Beam Quality Factor (M2) :
    < 1.2
  • Current
    15 A
  • Warm up time
    < 20 minutes
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    < 600 W
  • Power Stability
    = 1% rms
  • Pointing Stability :
    < 20 µrad
  • Interface
    RS 232 / Ethernet / GUI / External TTL Triggering
  • Power Supply
    100 to 240 V AC or 32 V DC, 15 A
  • Voltage
    100 to 240 VAC
  • Note
    Cooling Method: Air Cooled

Physical Properties

  • Package
    Benchtop
  • Dimension
    25 x 10 x 4.25 in.
  • Weight
    75 lbs

Environmental Conditions

  • Cooling Method
    Closed Loop Chiller
  • Operating Temperature
    15 to 30 Degree C
