FS2-343-20

Note: Your Quotation Request will be directed to Photonics Industries.

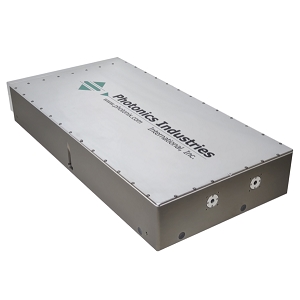

The FS2-343-20 from Photonics Industries is a Laser with Wavelength 343 nm, Power 20 W, Pulse Energy 20 µJ, Operating Temperature 15 to 30 Degree C. More details for FS2-343-20 can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    FS2-343-20
  • Manufacturer
    Photonics Industries

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser System
  • Operation Mode
    Pulsed Laser
  • Ultrafast Laser
    Femtosecond Lasers
  • Wavelength
    343 nm
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Power
    20 W
  • Pulse Energy
    20 µJ
  • Pulse Width
    < 500 fs to 20 ps
  • Application
    Ultrafast high precision cutting, drilling, welding, scribing, marking, intra-marking, patterning, depaneling, repair, Flat Panel Display Repair, LCD/LED/OLED Repair, Hydrophobic Material Manufacturing, Hydrophilic Material Manufacturing, Ultrafast Laser Assisted Etching (ULAE) Systems, Complex 3D Surface Micro-structuring, Terahertz (THz) Generation, High Harmonic Generation (HHG), X-Ray Generation, OPO Amplifier Systems, Laser Particle Accelerator Systems, Angle/Time-resolved Photoemission Spectroscopy Systems, Femtosecond-stimulated Raman Spectroscopy (FSRS) Systems, Multi-photon Fluorescence Microscopy Systems
  • Repetition Rate
    Single shot to 2 MHz (option up to 40 MHz)
  • Warm up time
    < 20 minutes
  • Application Industry
    Semiconductors & Microelectronics, Industrial, Industrial (Material Processing), LIDAR & Sensing, Scientific, Display / Projector & LED / Lighting
  • Beam Quality Factor (M2)
    < 1.3
  • Transverse Mode
    TEM00
  • Current
    15 A
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    < 800 W
  • Pointing Stability
    = 30 µrad
  • Wavelength Accuracy
    ±3 nm
  • Pulse to Pulse Stability
    3% rms
  • Package
    Benchtop
  • Interface
    RS 232 / Ethernet / GUI / External TTL Triggering
  • Power Supply
    100 to 240 V AC or 32 V DC, 15 A
  • Voltage
    100 to 240 VAC
  • Note
    Cooling Method: Air Cooled

Physical Properties

  • Dimension
    28.25 x 10 x 4.25 in.
  • Weight
    85 lbs

Environmental Conditions

  • Cooling Method
    Closed Loop Chiller
  • Operating Temperature
    15 to 30 Degree C

Technical Documents

Click to view more product details on manufacturer's website
