RGLX-532-1.5

140 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

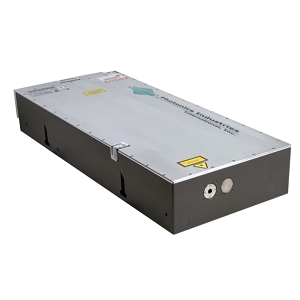

The RGLX-532-1.5 from Photonics Industries is a Laser with Wavelength 532 nm, Power 1.5 W, Pulse Energy 1.5 mJ, Pulse Width 25 ps, Repetition Rate 5 kHz. More details for RGLX-532-1.5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RGLX-532-1.5
  • Manufacturer
    Photonics Industries

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Automotive / Industrial & Manufacturing, Scientific / Research, Environmental, Defense / Military & Aerospace
  • Application
    Cutting, Drilling, Welding, Scribing, Marking, Sensing, Imaging, Cladding, Structuring, Material processing, Laser Rangefinders, Astronomy, Monitoring, Remote Sensing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    1.5 W
  • Pulse Energy :
    1.5 mJ
  • Pulse Width
    25 ps
  • Repetition Rate
    5 kHz
  • Pulse to Pulse Stability
    < 2% rms
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEMoo
  • Beam Quality Factor (M2) :
    <1.3
  • Current
    15 A
  • Modulation Frequency
    50 to 60 Hz
  • Power Consumption
    < 400 W
  • Power Stability
    < ±2%
  • Pointing Stability :
    < 50 µrad
  • Interface
    RS232, Ethernet, Software GUI, External TTL Triggering
  • Power Supply
    100 to 240 V AC or 32 V DC, 15 A
  • Voltage
    100 to 240 VAC

Physical Properties

  • Package
    Benchtop
  • Dimension
    24 x 8.5 x 3.75 in (LxWxH)
  • Weight
    55 lbs
  • Beam Diameter
    1.7 mm

Environmental Conditions

  • Cooling Method
    Closed Loop Chiller
  • Operating Temperature
    15 to 30 Degree C
