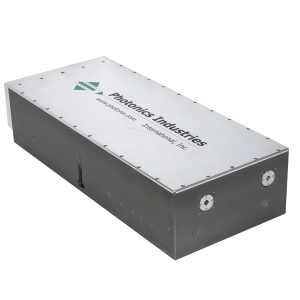

RX 1064-100

Note: Your Quotation Request will be directed to Photonics Industries.

The RX 1064-100 from Photonics Industries is a Laser with Power 100 W, Wavelength 1064 nm, Pulse Width 10 ps, Pulse Energy 1000 µJ, Repetition Rate 2 to 8 MHz. More details for RX 1064-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RX 1064-100
  • Manufacturer
    Photonics Industries

General Parameters

  • Configuration
    Laser Head with Control Unit (Integrated)
  • Type
    Laser System
  • Operation Mode
    Pulsed Laser
  • Application
    Cutting, Scribing, Drilling, Dicing, Material processing
  • Power
    100 W
  • Wavelength
    1064 nm
  • Ultrafast Laser
    Picosecond Lasers
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Pulse Width
    10 ps
  • Pulse Energy :
    1000 µJ
  • Warm up time
    < 15 min
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Repetition Rate
    2 to 8 MHz
  • Beam Shape
    Circular
  • Beam Divergence :
    < 2 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Transverse Mode
    TEMoo
  • Current
    15 A
  • Power Consumption
    < 600 W
  • Pointing Stability :
    < 20 µrad
  • Pulse to Pulse Stability
    1% rms
  • Package
    Benchtop
  • Interface
    Ethernet / RS 232 / GUI / External TTL Triggering
  • Power Supply
    100 to 240 V AC or 32 V DC, 15 A
  • Voltage
    100 to 240 VAC

Physical Properties

  • Dimension
    12 in x 3.75 in x 26 in (WxLxH)
  • Weight
    74 lbs
  • Beam Diameter
    2 mm

Environmental Conditions

  • Cooling Method
    Closed Loop Chiller
  • Operating Temperature
    15 to 30 Degree C
