SN-532-100

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Photonics Industries.

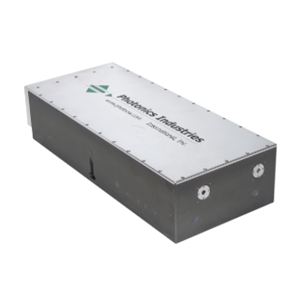

The SN-532-100 from Photonics Industries is a Laser with Wavelength 532 nm, Power 100 W, Pulse Energy 1 mJ, Pulse Width 100 ps to 5 ns, Repetition Rate Single shot to 2 MHz. More details for SN-532-100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SN-532-100
  • Manufacturer
    Photonics Industries
  • Description
    532 nm Sub-Nanosecond Lasers with 100 W Power

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers, Nanosecond Lasers
  • Application Industry
    Scientific Research, Automotive / Industrial & Manufacturing, Medical
  • Application
    Laser Scribing and Texturing, Laser-Induced Fluorescence and Imaging (LIF), PCB & Polymer Cutting & Drilling, Glass Cutting and Shaping, Time-Resolved Spectroscopy and Diagnostics, High-Precision Marking, Resistor Trimming, Medical Micro structuring
  • Operation Mode
    Pulsed Laser
  • Wavelength
    532 nm
  • Power
    100 W
  • Pulse Energy :
    1 mJ
  • Pulse Energy
    1 mJ
  • Pulse Width
    100 ps to 5 ns
  • Repetition Rate
    Single shot to 2 MHz
  • Pulse to Pulse Stability
    <2% RMS
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization
    Horizontal
  • Polarization ratio :
    >100:1
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <2 mrad
  • Beam Quality Factor (M2) :
    <1.2
  • Beam Shape
    Round
  • Laser Class
    CLASS 4
  • Warm up time
    <5 minutes (standby), <10 minutes (cold start)
  • Power Consumption
    1300 W
  • Power Stability
    <1% RMS
  • Pointing Stability :
    <20 µrad
  • Interface
    RS232, Ethernet, Software GUI, External TTL Triggering
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • RoHS
    Yes
  • Certifications
    CE, RoHS

Physical Properties

  • Dimension
    20 x 10 x 4.5 Inches
  • Weight
    57 lbs

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Relative Humidity
    0 to 80%
  • Altitude
    Sea level to 12000 m
  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -10 to 40 Degree C
