CP64 - 1064 nm MOPA laser

Laser by Picophotonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picophotonics.

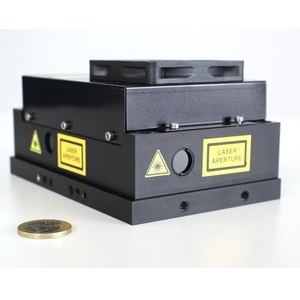

The CP64 - 1064 nm MOPA laser from Picophotonics is a Laser with Wavelength 1064.4 nm, Power Up to 600 mW, Pulse Energy Up to 10 µJ, Pulse Width 60 to 500 ps, Repetition Rate single pulse to 200 kHz. More details for CP64 - 1064 nm MOPA laser can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CP64 - 1064 nm MOPA laser
  • Manufacturer
    Picophotonics
  • Description
    1064.4 nm Wavelength Round Beam Profile microchip MOPA laser with <0.1 nm Spectral width

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Picosecond Lasers
  • Application Industry
    Scientific Research
  • Application
    Scientific and Industrial Applications
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064.4 nm
  • Wavelength Accuracy
    ±0.3 nm
  • Spectral Width :
    <0.1 nm
  • Power
    Up to 600 mW
  • Pulse Energy :
    Up to 10 µJ
  • Pulse Energy
    Up to 10 µJ
  • Pulse Width
    60 to 500 ps
  • Repetition Rate
    single pulse to 200 kHz
  • Tunable
    No
  • Fiber Coupled
    Yes, No
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Polarization ratio :
    1:100
  • Beam Quality Factor (M2) :
    <1.3
  • Beam Shape
    Round
  • Laser Class
    Class 3B
  • Warm up time
    <5 min
  • Power Stability
    <1%
  • Peak Power
    Up to 100 kW
  • Warranty
    1 Year

Physical Properties

  • Dimension
    140 x 95 x 75 mm

Environmental Conditions

  • Operating Temperature
    15 to 40 Degree C
