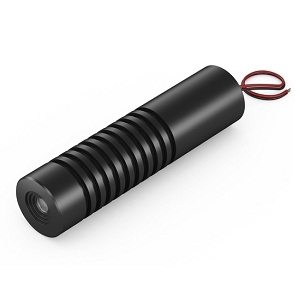

CA532-10-3(20x80)30

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The CA532-10-3(20x80)30 from Picotronic is a Laser with Wavelength 532 nm, Power 10 mW, Output Power (CW) 10 mW, Operating Temperature 15 to 30 Degree C, Storage Temperature -40 to 80 Degree C. More details for CA532-10-3(20x80)30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CA532-10-3(20x80)30
  • Manufacturer
    Picotronic
  • Description
    Isolated Cross laser module, Green, 30°, 532nm, 10mW, 3V DC, 20x80mm, class 2M

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    10 mW
  • Output Power (CW)
    10 mW
  • Technology
    Solid State Laser, Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.2 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Krypton Fluoride
  • Laser Gain Medium
    Excimer Laser
  • Beam Shape
    Cross
  • Current
    125 to 375 mA
  • Laser Class
    Class 2M
  • Warm up time
    <15 min.
  • Output Aperture
    5 mm
  • Power Stability
    +/- 20% @ 15-30°C
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 10 m, Fan Angle: 30°, Thickness: 3 mm@5m

Physical Properties

  • Dimension
    Ø20 x 80 mm
  • Weight
    60.5 g

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -40 to 80 Degree C
