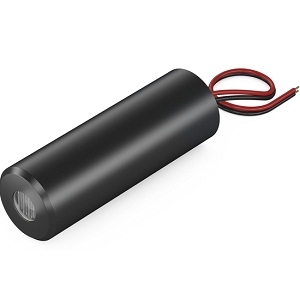

CB850-15-5(16x45)10DEG-F120-POTI

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The CB850-15-5(16x45)10DEG-F120-POTI from Picotronic is a Laser with Wavelength 850 nm, Power 15 mW, Output Power (CW) 15 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for CB850-15-5(16x45)10DEG-F120-POTI can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CB850-15-5(16x45)10DEG-F120-POTI
  • Manufacturer
    Picotronic
  • Description
    Isolated Cross laser module, red, 10°, 850nm, 15mW, 5V DC, 16x45mm, class 3R, focus 120mm, with potentiometer for output power regulation

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    850 nm
  • Power
    15 mW
  • Output Power (CW)
    15 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    0.3 mrad
  • Beam Shape
    Cross
  • Current
    80 to 200 mA
  • Laser Class
    Class 3R
  • Output Aperture
    6.8 mm
  • Voltage
    5 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 0.12 m, Fan Angle: 10°, Thickness: 0.5 [email protected]

Physical Properties

  • Dimension
    Ø16 x 45 mm
  • Weight
    23.5 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
