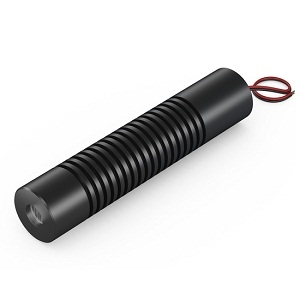

DA532-1-3(20x95)-01607

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DA532-1-3(20x95)-01607 from Picotronic is a Laser with Wavelength 532 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature 15 to 30 Degree C, Storage Temperature -40 to 80 Degree C. More details for DA532-1-3(20x95)-01607 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DA532-1-3(20x95)-01607
  • Manufacturer
    Picotronic
  • Description
    Isolated, dot lasermodule, green, 532nm, 1mW, 3V DC, 20x95mm, class 2

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Technology
    Solid State Laser, Gas Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    0.2 mrad
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Krypton Fluoride
  • Laser Gain Medium
    Excimer Laser
  • Beam Shape
    Dot
  • Current
    80 to 280 mA
  • Laser Class
    Class 2
  • Warm up time
    <15 min.
  • Output Aperture
    8 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 100 m

Physical Properties

  • Dimension
    Ø20 x 95 mm
  • Weight
    63 g
  • Beam Area
    9.5@40m
  • Beam Diameter
    9 mm

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -40 to 80 Degree C
