DF520-1-5(3.8x9.15)-QCW

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The DF520-1-5(3.8x9.15)-QCW from Picotronic is a Laser with Wavelength 520 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature -10 to 60 Degree C, Storage Temperature -40 to 80 Degree C. More details for DF520-1-5(3.8x9.15)-QCW can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DF520-1-5(3.8x9.15)-QCW
  • Manufacturer
    Picotronic
  • Description

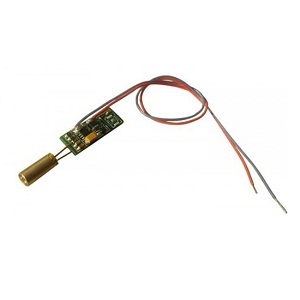

    Dot lasermodule, direct green Laserdiode, 520nm, 1mW, 5V DC, 8x35mm, class 2, with outside driver board, internal modulation

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    520 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    0.7 mrad
  • Beam Shape
    Dot
  • Current
    15 to 40 mA
  • Laser Class
    Class 2
  • Output Aperture
    2 mm
  • Power Stability
    +/- 3% @ -10-50°C
  • Voltage
    4.5 to 5.5 VDC
  • Note
    Material: Bronze, Cable length: 100 mm, Operating Distance: 25 m

Physical Properties

  • Dimension
    Ø3.8 x 9.15 mm
  • Weight
    3.5 g
  • Beam Area
    <12 mm@10m

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -40 to 80 Degree C
