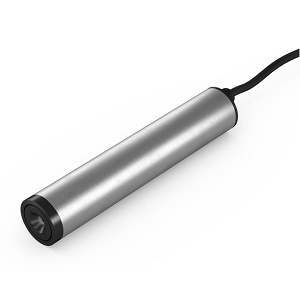

LB658-30-230(40x210)

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LB658-30-230(40x210) from Picotronic is a Laser with Wavelength 658 nm, Power 30 mW, Output Power (CW) 30 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LB658-30-230(40x210) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LB658-30-230(40x210)
  • Manufacturer
    Picotronic
  • Description
    Isolated Line laser module, red, 90°, 658nm, 30mW, 230V AC, 40x210mm, class 2M

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing, Defense / Military & Aerospace
  • Operation Mode
    CW Laser
  • Wavelength
    658 nm
  • Power
    30 mW
  • Output Power (CW)
    30 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.3 mrad
  • Beam Shape
    Line
  • Current
    5 to 15 mA
  • Laser Class
    Class 2M
  • Output Aperture
    8 mm
  • Voltage
    207 to 253 VDC
  • Note
    Connector: AC CEE 7/7, Material: Aluminium, Cable length: 1750 mm, Operating Distance: 20 m, Fan Angle: 90°, Thickness: 3 mm@7m

Physical Properties

  • Dimension
    Ø40 x 210 mm
  • Weight
    920 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
