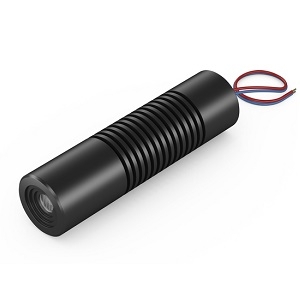

LD520-10-24(16x80)-C1000-QCW

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LD520-10-24(16x80)-C1000-QCW from Picotronic is a Laser with Wavelength 520 nm, Power 10 mW, Output Power (CW) 10 mW, Operating Temperature -10 to 60 Degree C, Storage Temperature -40 to 80 Degree C. More details for LD520-10-24(16x80)-C1000-QCW can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LD520-10-24(16x80)-C1000-QCW
  • Manufacturer
    Picotronic
  • Description
    Isolated Line laser module, 90°, Green, 520nm, 10mW, 12-24V DC, 16x80mm, class 1M, wire length 1m, internal modulation

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    520 nm
  • Power
    10 mW
  • Output Power (CW)
    10 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    0.5 mrad
  • Beam Shape
    Line
  • Current
    20 to 75 mA
  • Laser Class
    Class I
  • Modulation Frequency
    1 KHz
  • Output Aperture
    5 mm
  • Power Stability
    +/- 5% @ -10-45°C
  • Voltage
    12 to 24 VDC
  • Note
    Material: Aluminium, Cable length: 1000 mm, Operating Distance: 5 m, Fan Angle: 90°, Thickness: 2 mm@5m

Physical Properties

  • Dimension
    Ø16 x 80 mm
  • Weight
    50 g

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -40 to 80 Degree C
