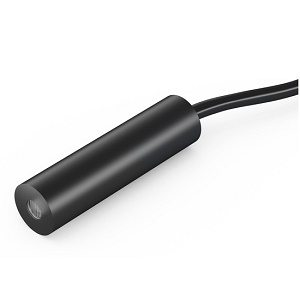

LD635-1-24(14x45)-C500

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LD635-1-24(14x45)-C500 from Picotronic is a Laser with Wavelength 635 nm, Power 1 mW, Output Power (CW) 1 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LD635-1-24(14x45)-C500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LD635-1-24(14x45)-C500
  • Manufacturer
    Picotronic
  • Description
    Isolated Line laser module, red, 90°, 635nm, 1mW, 24V DC, 14x45mm, class 1

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Power
    1 mW
  • Output Power (CW)
    1 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.5 mrad
  • Beam Shape
    Line
  • Current
    10 to 30 mA
  • Laser Class
    Class I
  • Output Aperture
    5.5 mm
  • Voltage
    21.6 to 26.4 VDC
  • Note
    Material: Aluminium, Cable length: 500 mm, Operating Distance: 1 m, Fan Angle: 90°, Thickness: 1 mm@1m

Physical Properties

  • Dimension
    Ø14 x 45 mm
  • Weight
    17 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
