LE405-10-5-F(14x60)

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

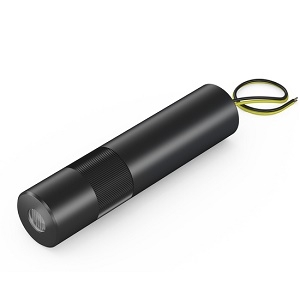

The LE405-10-5-F(14x60) from Picotronic is a Laser with Wavelength 405 nm, Power 10 mW, Output Power (CW) 10 mW, Operating Temperature -10 to 50 Degree C, Storage Temperature -40 to 70 Degree C. More details for LE405-10-5-F(14x60) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LE405-10-5-F(14x60)
  • Manufacturer
    Picotronic
  • Description
    Adjustable Line laser, blue, 90°, 405nm, 10mW, 5V DC, 14x60mm, class 1

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Scientific / Research
  • Operation Mode
    CW Laser
  • Wavelength
    405 nm
  • Power
    10 mW
  • Output Power (CW)
    10 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Blue
  • Beam Divergence :
    0.6 mrad
  • Beam Shape
    Line
  • Current
    40 to 80 mA
  • Laser Class
    Class I
  • Output Aperture
    5 mm
  • Voltage
    4.5 to 5.5 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 5 m, Fan Angle: 90°

Physical Properties

  • Dimension
    Ø14 x 60 mm
  • Weight
    18 g

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C
