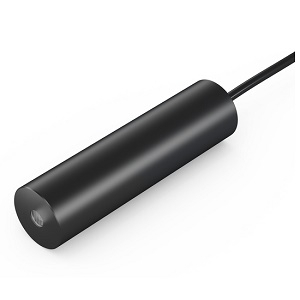

LE650-5-3(20x75)30-C3000

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LE650-5-3(20x75)30-C3000 from Picotronic is a Laser with Wavelength 650 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LE650-5-3(20x75)30-C3000 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LE650-5-3(20x75)30-C3000
  • Manufacturer
    Picotronic
  • Description
    Isolated Line laser module, red, 30°, 650nm, 5mW, 3V DC, 20x75mm, class 1

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.6 mrad
  • Beam Shape
    Line
  • Current
    15 to 45 mA
  • Laser Class
    Class I
  • Output Aperture
    5.5 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 3000 mm, Operating Distance: 5 m, Fan Angle: 30°, Thickness: 1.5 mm@3m

Physical Properties

  • Dimension
    Ø20 x 75 mm
  • Weight
    100 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
