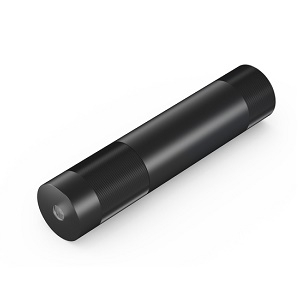

LE650-5-3-F-S(22x100)45DEG

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LE650-5-3-F-S(22x100)45DEG from Picotronic is a Laser with Wavelength 650 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LE650-5-3-F-S(22x100)45DEG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LE650-5-3-F-S(22x100)45DEG
  • Manufacturer
    Picotronic
  • Description
    Focusable Line laser module, red, 45°, 650nm, 5mW, 3V DC, 22x100mm, class 1, battery CR123A

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.6 mrad
  • Beam Shape
    Line
  • Current
    20 to 55 mA
  • Laser Class
    Class I
  • Output Aperture
    4.5 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Operating Distance: 3 m, Fan Angle: 45°

Physical Properties

  • Dimension
    Ø22 x 100 mm
  • Weight
    78 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
