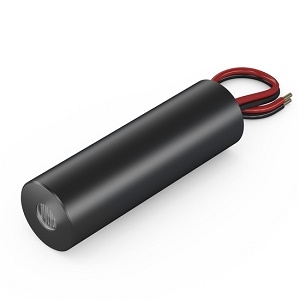

LH658-60-3(14x45)90DEG-F500

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LH658-60-3(14x45)90DEG-F500 from Picotronic is a Laser with Wavelength 658 nm, Power 60 mW, Output Power (CW) 60 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LH658-60-3(14x45)90DEG-F500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LH658-60-3(14x45)90DEG-F500
  • Manufacturer
    Picotronic
  • Description
    Isolated Line laser module, red, 90°, 658nm, 60mW, 3V DC, 14x45mm, focus 500mm class 3R

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    658 nm
  • Power
    60 mW
  • Output Power (CW)
    60 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    1 mrad
  • Beam Shape
    Line
  • Current
    150 to 220 mA
  • Laser Class
    Class 3R
  • Output Aperture
    5.5 mm
  • Voltage
    3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 0.5 m, Fan Angle: 90°, Thickness: 0.5 [email protected]

Physical Properties

  • Dimension
    Ø14 x 45 mm
  • Weight
    18 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
