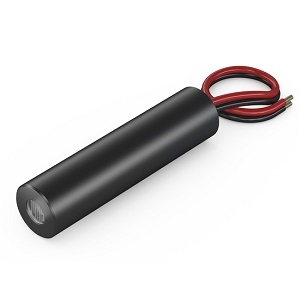

LH850-5-5(10x40)10DEG

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LH850-5-5(10x40)10DEG from Picotronic is a Laser with Wavelength 850 nm, Power 5 mW, Output Power (CW) 5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LH850-5-5(10x40)10DEG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LH850-5-5(10x40)10DEG
  • Manufacturer
    Picotronic
  • Description
    Isolated Line laser module, infrared, 10°, 850nm, 5mW, 5V DC, 10x40mm, class 1M

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research
  • Application
    Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    850 nm
  • Power
    5 mW
  • Output Power (CW)
    5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    1 mrad
  • Beam Shape
    Line
  • Current
    30 to 90 mA
  • Laser Class
    Class 1M
  • Output Aperture
    4.5 mm
  • Voltage
    4.5 to 5.5 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 0.32 m, Fan Angle: 10°, Thickness: 0.5 [email protected]

Physical Properties

  • Dimension
    Ø10 x 40 mm
  • Weight
    6.3 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
