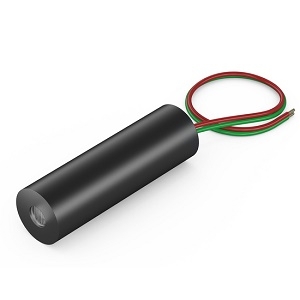

LI635-2.5-3(8x26)-F100

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LI635-2.5-3(8x26)-F100 from Picotronic is a Laser with Wavelength 635 nm, Power 2.5 mW, Output Power (CW) 2.5 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LI635-2.5-3(8x26)-F100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LI635-2.5-3(8x26)-F100
  • Manufacturer
    Picotronic
  • Description
    Isolated, red Linelaser, 635nm, 2.5mW, 3V DC, class 1, focus 100mm

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Scientific / Research
  • Application
    Oncology, Laser Surgery, Medical Imaging, Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Power
    2.5 mW
  • Output Power (CW)
    2.5 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    1.5 mrad
  • Beam Shape
    Line
  • Current
    20 to 55 mA
  • Laser Class
    Class I
  • Output Aperture
    5.5 mm
  • Voltage
    2.7 to 3.3 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 0.1 m, Fan Angle: 90°, Thickness: 0.3 mm@100 mm

Physical Properties

  • Dimension
    Ø8 x 26 mm
  • Weight
    3.5 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Technical Documents
Click to view more product details on manufacturer's website
