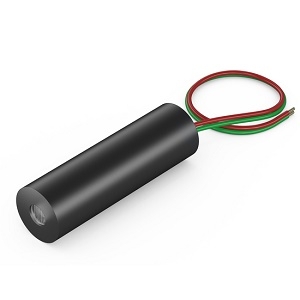

LI650-4-5(8x26)20DEG-F100

Laser by Picotronic
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The LI650-4-5(8x26)20DEG-F100 from Picotronic is a Laser with Wavelength 650 nm, Power 4 mW, Output Power (CW) 4 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for LI650-4-5(8x26)20DEG-F100 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LI650-4-5(8x26)20DEG-F100
  • Manufacturer
    Picotronic
  • Description
    Isolated Line laser module, red, 20°, 650nm, 4mW, 5V DC, 8x26mm, class 1

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Scientific / Research
  • Application
    Oncology, Laser Surgery, Medical Imaging, Imaging
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Power
    4 mW
  • Output Power (CW)
    4 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    1.5 mrad
  • Beam Shape
    Line
  • Current
    15 to 45 mA
  • Laser Class
    Class I
  • Output Aperture
    3 mm
  • Voltage
    4.5 to 5.5 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 0.1 m, Fan Angle: 20°, Thickness: 0.3 [email protected]

Physical Properties

  • Dimension
    Ø8 x 26 mm
  • Weight
    4 g

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Technical Documents
Click to view more product details on manufacturer's website
