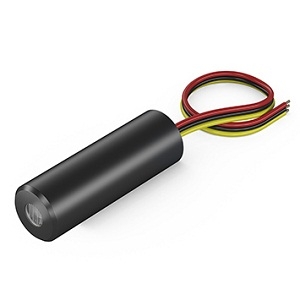

MDC658-40-5(12x31)

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The MDC658-40-5(12x31) from Picotronic is a Laser with Wavelength 658 nm, Power 40 mW, Output Power (CW) 40 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for MDC658-40-5(12x31) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MDC658-40-5(12x31)
  • Manufacturer
    Picotronic
  • Description
    modulated dot laser, red, 658nm, 40mW, 5V DC, 12x31mm, with M12 winding, class 3B

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    658 nm
  • Power
    40 mW
  • Output Power (CW)
    40 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Red
  • Beam Divergence :
    0.4 mrad
  • Beam Shape
    Dot
  • Current
    40 to 120 mA
  • Laser Class
    Class 3B
  • Modulation Frequency
    1 kHz
  • Output Aperture
    3 mm
  • Voltage
    5 VDC
  • Note
    Material: Aluminium, Cable length: 250 mm, Operating Distance: 10 m

Physical Properties

  • Dimension
    Ø12 x 31 mm
  • Weight
    22.3 g
  • Beam Area
    3 mm@100 mm

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
