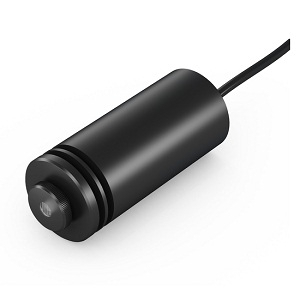

MDH808-600-5(45x100)

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The MDH808-600-5(45x100) from Picotronic is a Laser with Wavelength 808 nm, Power 600 mW, Output Power (CW) 600 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for MDH808-600-5(45x100) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MDH808-600-5(45x100)
  • Manufacturer
    Picotronic
  • Description
    Modulated focusable Dot lasermodule, infrared, 808nm, 600mW, 5V DC, 45x100mm, class 4

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Power
    600 mW
  • Output Power (CW)
    600 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    1 mrad
  • Beam Shape
    Dot
  • Current
    450 to 1350 mA
  • Laser Class
    Class 4
  • Modulation Frequency
    1 kHz
  • Output Aperture
    6 mm
  • Voltage
    4.5 to 5.5 VDC
  • Note
    Material: Aluminium, Cable length: 500 mm, Operating Distance: 10 m

Physical Properties

  • Dimension
    Ø45 x 100 mm
  • Weight
    250 g
  • Beam Area
    adjustable

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
