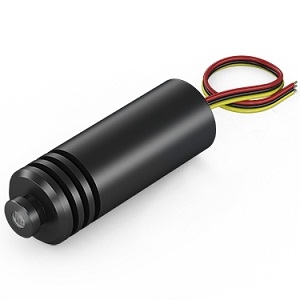

MH808-350-5(22x65)

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The MH808-350-5(22x65) from Picotronic is a Laser with Wavelength 808 nm, Power 350 mW, Output Power (CW) 350 mW, Operating Temperature -20 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for MH808-350-5(22x65) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MH808-350-5(22x65)
  • Manufacturer
    Picotronic
  • Description
    modulated focusable isolated Dot lasermodule, infrared, 808nm, 350mW, 5V DC, 22x65mm, class 3B

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Power
    350 mW
  • Output Power (CW)
    350 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Divergence :
    1 mrad
  • Beam Shape
    Dot
  • Current
    250 to 750 mA
  • Laser Class
    Class 3B
  • Modulation Frequency
    200 kHz
  • Output Aperture
    5 mm
  • Voltage
    4.5 to 5.5 VDC
  • Note
    Material: Aluminium, Cable length: 100 mm, Operating Distance: 50 m

Physical Properties

  • Dimension
    Ø22 x 65 mm
  • Weight
    44 g
  • Beam Area
    adjustable

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
