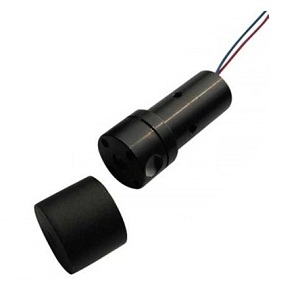

MLE520-10-4.5(15x34)

Laser by Picotronic
924 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Picotronic.

The MLE520-10-4.5(15x34) from Picotronic is a Laser with Wavelength 520 nm, Power 10 mW, Output Power (CW) 10 mW, Operating Temperature -10 to 60 Degree C, Storage Temperature -40 to 80 Degree C. More details for MLE520-10-4.5(15x34) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MLE520-10-4.5(15x34)
  • Manufacturer
    Picotronic
  • Description
    Line laser module, direct Green Laserdiode, 520nm, 120°, 10mW, 4.5V DC, 15x34mm, class 1M, internal modulation

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    520 nm
  • Power
    10 mW
  • Output Power (CW)
    10 mW
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Beam Divergence :
    0.6 mrad
  • Beam Shape
    Line
  • Current
    100 to 200 mA
  • Laser Class
    Class 1M
  • Modulation Frequency
    5 KHz
  • Output Aperture
    3.5 mm
  • Power Stability
    +/- 3% @ -10-50°C
  • Voltage
    3 to 6 VDC
  • Note
    Material: Aluminium, Cable length: 150 mm, Operating Distance: 10 m, Thickness: 2.5 mm@5m

Physical Properties

  • Dimension
    Ø15 x 34 mm
  • Weight
    5 g

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -40 to 80 Degree C
