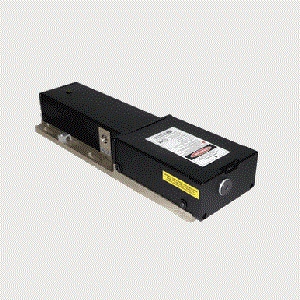

DTL-389QT-10

135 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Power Technology Inc..

The DTL-389QT-10 from Power Technology Inc. is a Laser with Wavelength 263 nm, Power 20 mW, Output Power (Pulsed) 20 mW, Pulse Energy 10 µJ, Pulse Width 5 ns. More details for DTL-389QT-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DTL-389QT-10
  • Manufacturer
    Power Technology Inc.
  • Description
    263nm 10µJ(1kHz) AOM Q-Switched Laboratory Style Laser Systems

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    Pulsed Laser
  • Wavelength
    263 nm
  • Power
    20 mW
  • Output Power (Pulsed)
    20 mW
  • Pulse Energy :
    10 µJ
  • Pulse Energy
    10 µJ
  • Pulse Width
    5 ns
  • Repetition Rate
    0.01 to 10kHz
  • Pulse to Pulse Stability
    <15% (at 0.01 - 1kHz, Pulse energy >80%)
  • Technology
    Q-Switched Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Ultraviolet
  • Polarization
    Horizontal
  • Polarization Orientation
    Linear
  • Transverse Mode
    TEM00
  • Beam Divergence :
    1 mrad
  • Beam Shape
    Circular
  • Current
    6 A
  • Laser Class
    Class IV
  • Warm up time
    10 minutes
  • Peak Power
    >2 kW
  • Interface
    RS-232
  • Power Supply
    90 to 264 VAC
  • Voltage
    12 VDC

Physical Properties

  • Laser Head Dimension
    311 x 55 x 90 mm
  • Power Supply Dimension
    150 x 43 x 93mm Driver
  • Weight
    13.25 g
  • Beam Area
    1mm at exit (1/e^2)

Environmental Conditions

  • Relative Humidity
    up to 80%
  • Operating Temperature
    15 to 35 Degree C
